Certification: CE RoHS ISO9001

Size: 210*125*50 mm;

Weight: 1100g

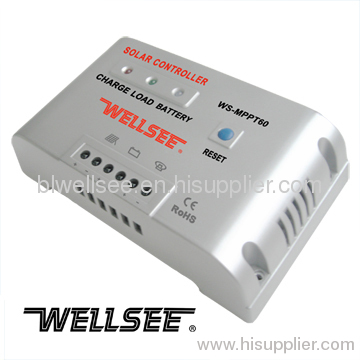

This WS-MPPT60 solar controller (also known as WELLSEE intelligent solar charge controller, solar charge controller, PV controller) can intelligently regulate the working voltage of solar panels, letting the solar panels always work at Maximum Power Point of V-A curve. Compared with ordinary solar controller, this MPPT controller can increase the efficiency of PV modules by 10%-30%. WELLSEE WS-MPPT solar controllers 10A--60A include 12V series, 24V series and 48V series.

Model	WS-MPPT60 40A	WS-MPPT60 50A	WS-MPPT60 60A
Rated Voltage	12V/24V 48V
Max Load current	40A	50A	60A
Input current range	12V-40V/24V-80V/48V-110V
Length≤1m Charge loop drop	0.25V
Length≤1m Discharge loop drop	0.05V
Over voltage protection	17V/34V/68V
Full charge cut	13.7V/27.4V/54.8V
Low voltage cut	10.5~11V/21V~22V/42V~43V
Temperature compensation	-3mv/°C/cell
No load loss	≤30 mA
Max wire area	6 mm2
Ambient temperature	-25----+55 °C
